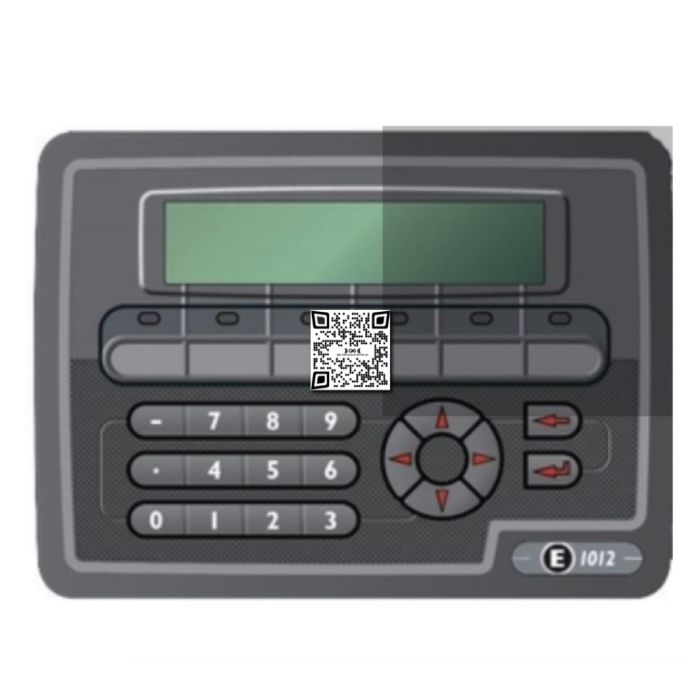

MITSUBISHI E1022 STN HMI

MITSUBISHI E1022 STN HMI

Body Case is made up of Cast Aluminium
Display size 5.5 Inch

CPU RISC CPU(Intel Xscale) 32 MB Intel Strata Flash, 64 MB RAM
Unit style function key
Front panel, W x H x D 155 x 155 x 6 mm
Mounting depth 44 mm
Power Supply +24V DC (20 - 30V DC). 3-pin jack connection block.
Resolution (height) 64 pixel
Resolution (width) 240 pixel
Supply Voltage 24 V
Manufacturer Series E1000
Display Type LCD
Display Colour Monochrome
Port Type DB25, DB9
Onboard Memory 64 MB
Backlight LED with dimming
Number of serial ports 1 Port 9pin DSUB/1 Port 25 pin DSUB
Serial port 1 RS 232 (RTS/CTS)
Serial port 2 RS422 (RTS)/RS485
