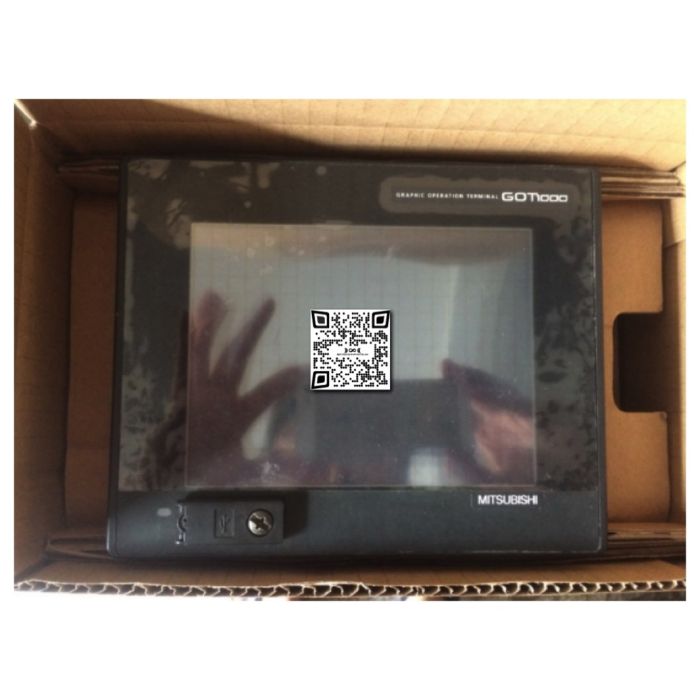

MITSUBISHI GT1555-QSBD HMI

MITSUBISHI GT1555-QSBD HMI

Screen Size: 5.7 inch
Screen Type: STN color LCD
Communication Interface: RS-232/ USB/ CF Card/ Optional Function Board/ Extension Unit
Graphic Standard: QVGA
Resolution: 320X240
Protection Class: IP 65
Flash Memory: 9 MB built-in Flash Memory
Applicable Software Package: GT Works3 Version1.54G or later
Rated Input Power Supply: 24V DC (+25%, -20%)
Battery Type: GT15-BAT type lithium battery
Touch Panel Type: Matrix resistive typePanel Cut Dimensions(WxH): 153 x 121 mm
External Dimensions(WxHxD): 167 x 135 x 60 mm
Display Size(WxH): 115 x 86 mm
Display Color: 4096.0
Viewing Angle: Right: 55?, Left: 55?, Up: 65?, Down: 70?
Operating Temperature: 0°C to 50°C
