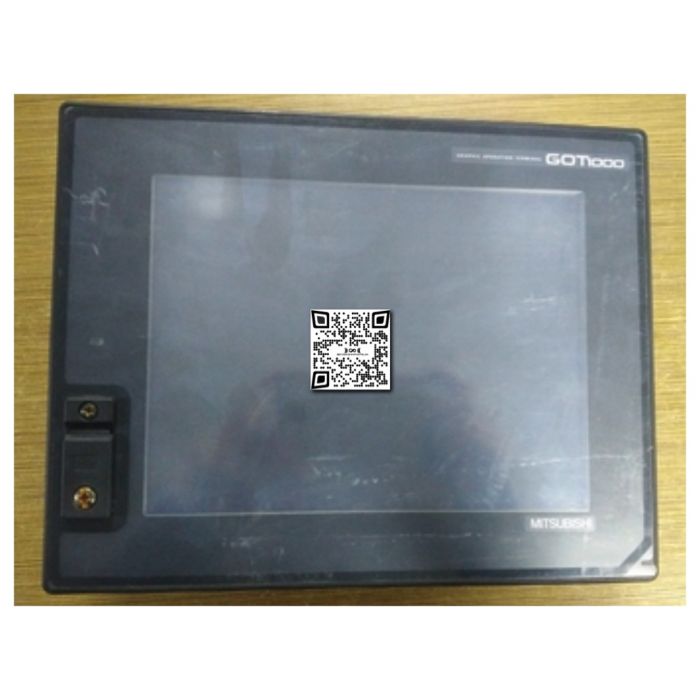

MITSUBISHI GT1562-VNBD HMI

MITSUBISHI GT1562-VNBD HMI

Screen Size: 8.4 inch
Screen Type: TFT color LCD
Communication Interface: RS-232/ USB/ CF Card/ Optional Function Board/ Extension Unit
Graphic Standard: VGA
Resolution: 640X480O
Protection Class: IP 65
Flash Memory: 5 MB built-in Flash Memory
Applicable Software Package: GT Works3 Version1.54G or laterRated
Input Power Supply: 24V DC (+25%, -20%)
Battery Type: GT15-BAT type lithium battery
Touch Panel Type: Matrix resistive type
Panel Cut Dimensions(WxH): 227 x 176 mm
External Dimensions(WxHxD): 241 x 190 x 52 mm
Display Size(WxH): 171 x 128 mm
Display Color: 16.0
Viewing Angle: Right: 45?, Left: 45?, Up: 20?, Down: 20?
Operating Temperature: 0°C to 50°C.
