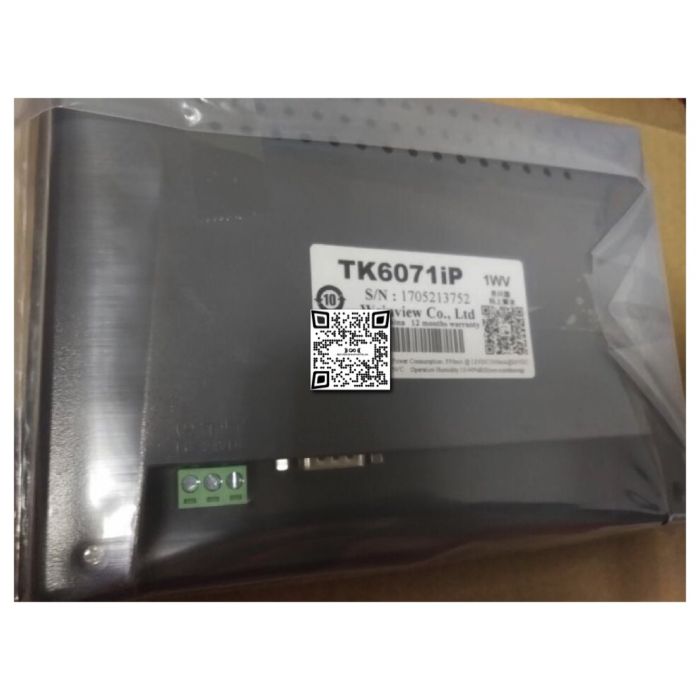

WEINVIEW TK6071IP HMI

WEINVIEW TK6071IP HMI

Monitor 7 INCH TFT
Resolution (WxH dots) 800 x 480
Display Brightness (cd/m2) 350
Contrast 500:1
Backlight type LED
Backlight Life > 30,000 hours
Display colors 65536
Touch Panel Type 4 -wire analog resistive
Touch Accuracy Active Area Length (X) ± 2%, Width (Y) ± 2%
Memory Flash memory (MB) 128
DRAM (MB) 64
Processor 32Bit RISC CPU 400MHz
Communication port Mini USB download port USB 2.0 x 1 COM port
COM1 RS-232, COM2 RS-485 2W/4W
Power supply Input Power 24 ± 20% VDC
Power Consumption 350mA @ 24V
Dimensions WxHxD 200.4 x 146.5 x 34mm
Protection class IP65 front panel protection
Storage temperature -20 ° ~ 60 ° C (-4 ° ~ 140 ° F)
Ambient temperature 0 ° ~ 50 ° C (32 ° ~ 122 ° F)
Using ambient humidity 10% ~ 90% RH ( non-condensing ).
